Product Name: Tiffany T Narrow with Full Pavé Bracelet – CAD File
Description:
This CAD model is a professionally designed Tiffany T-inspired narrow bracelet featuring a full pavé diamond setting. The design includes a fully modeled locking mechanism with a concealed hinge, making it production-ready for high-end fine jewelry manufacturing. Ideal for 3D printing, casting, and client-ready custom projects.
Specifications:

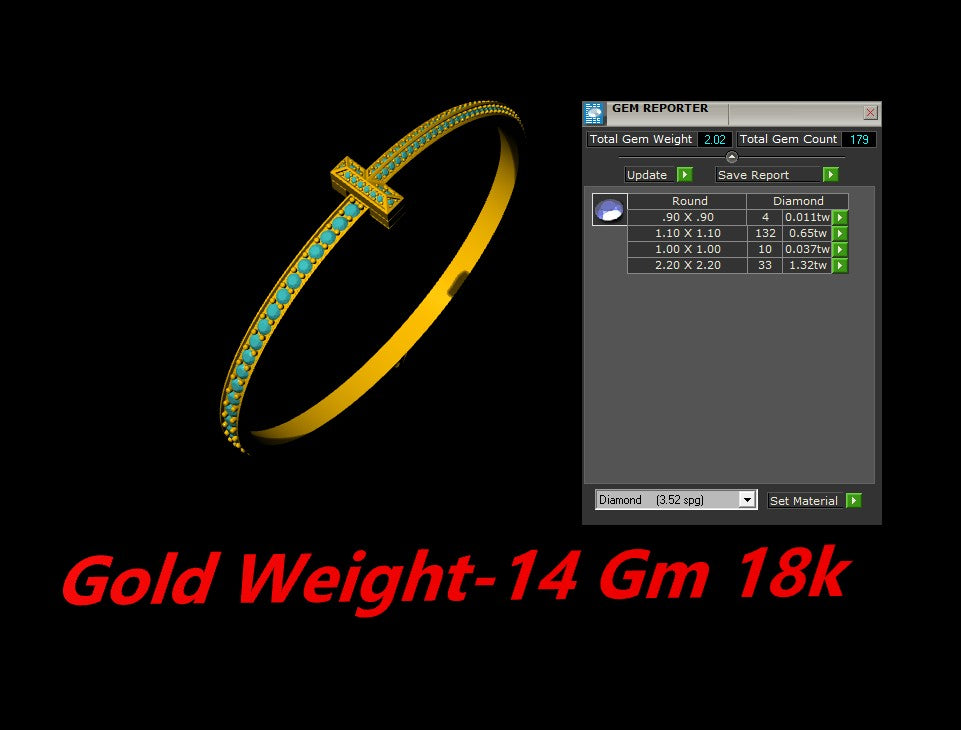

Gold Weight (Estimated in 18K): 14.00 grams
Total Diamond Weight: 2.02 carats
Total Stones: 179 round brilliant cut
Diamond Size Breakdown:
0.90 mm – 4 pcs
1.00 mm – 10 pcs
1.10 mm – 132 pcs
2.20 mm – 33 pcs
Dimensions:

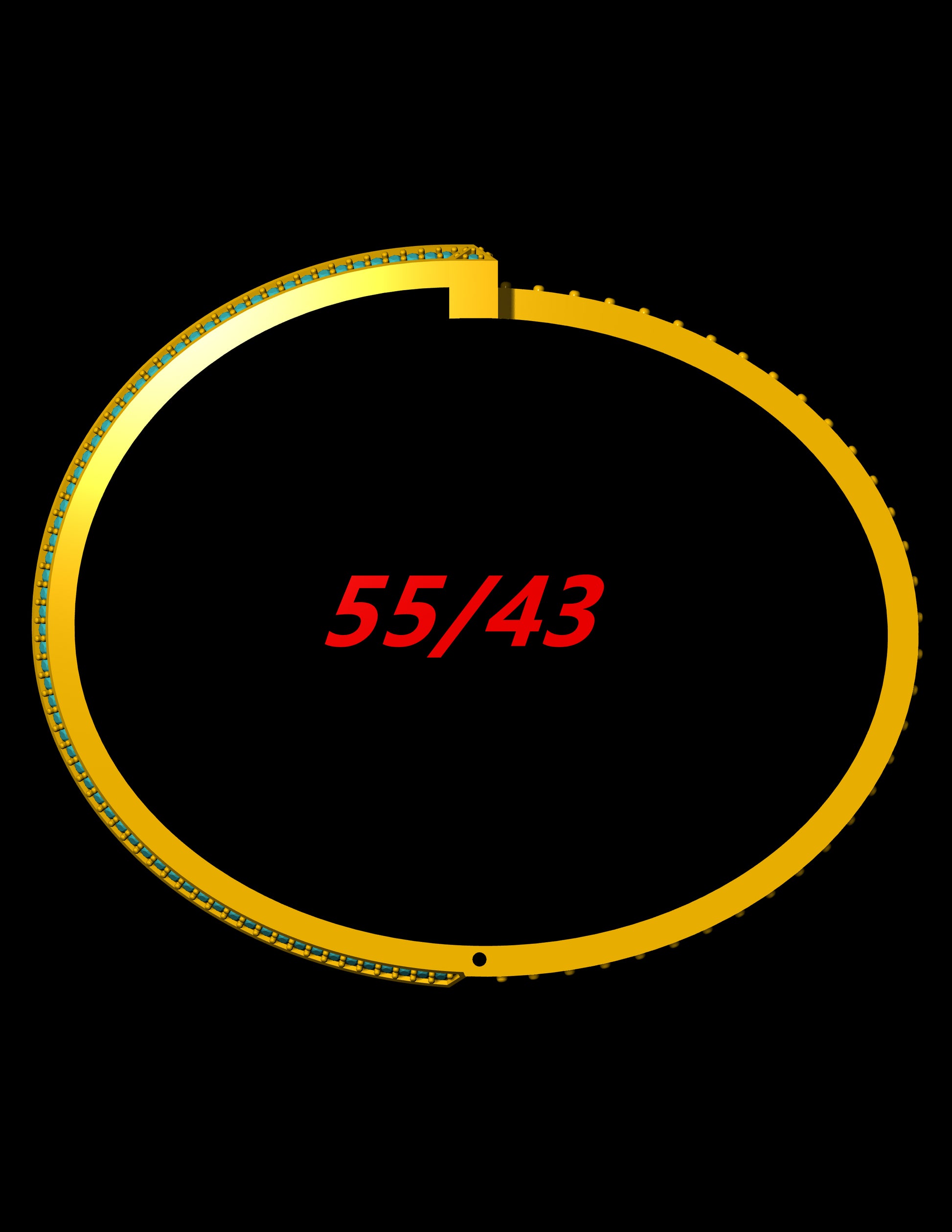

Inner Bracelet Size: 55 mm x 43 mm (oval fit)

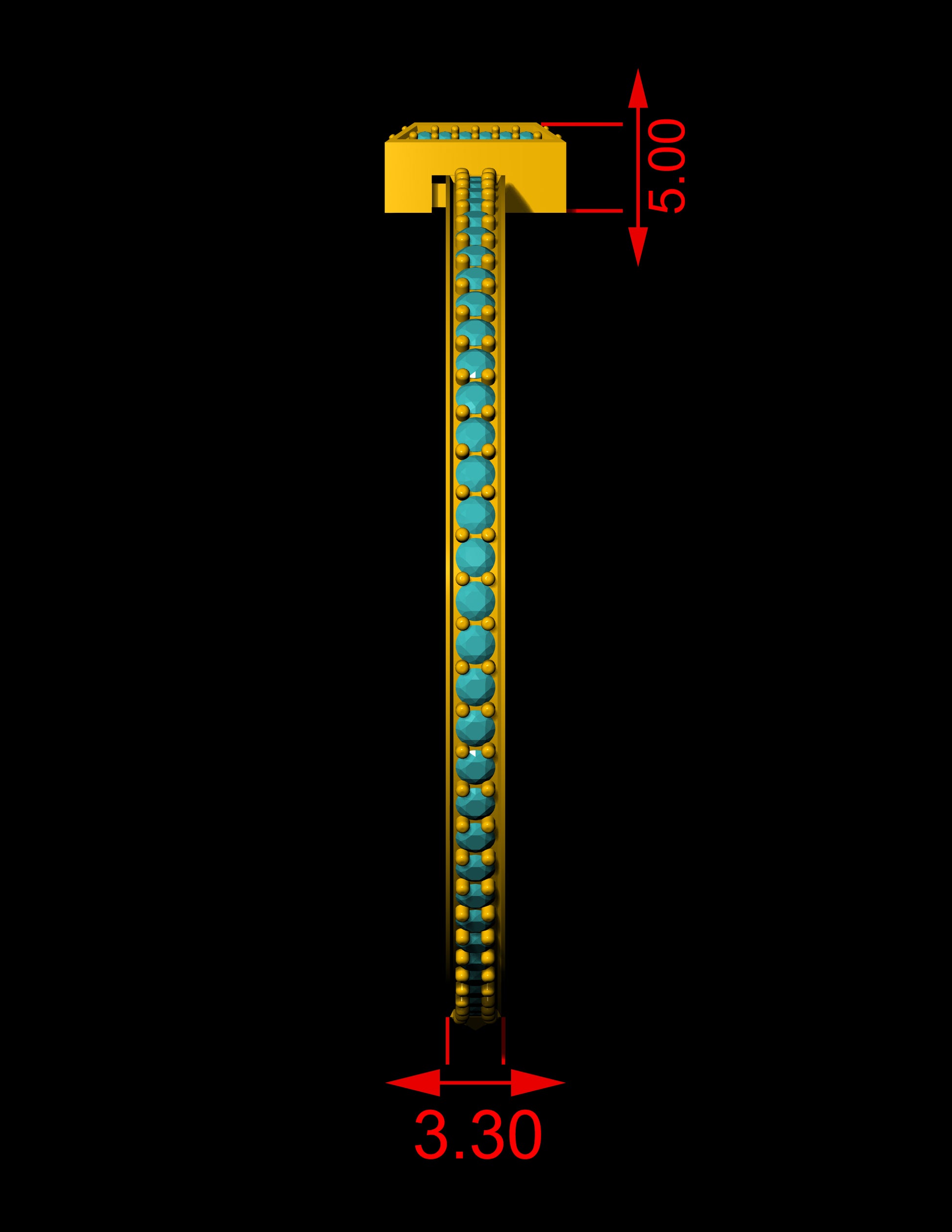

Band Width: 3.30 mm

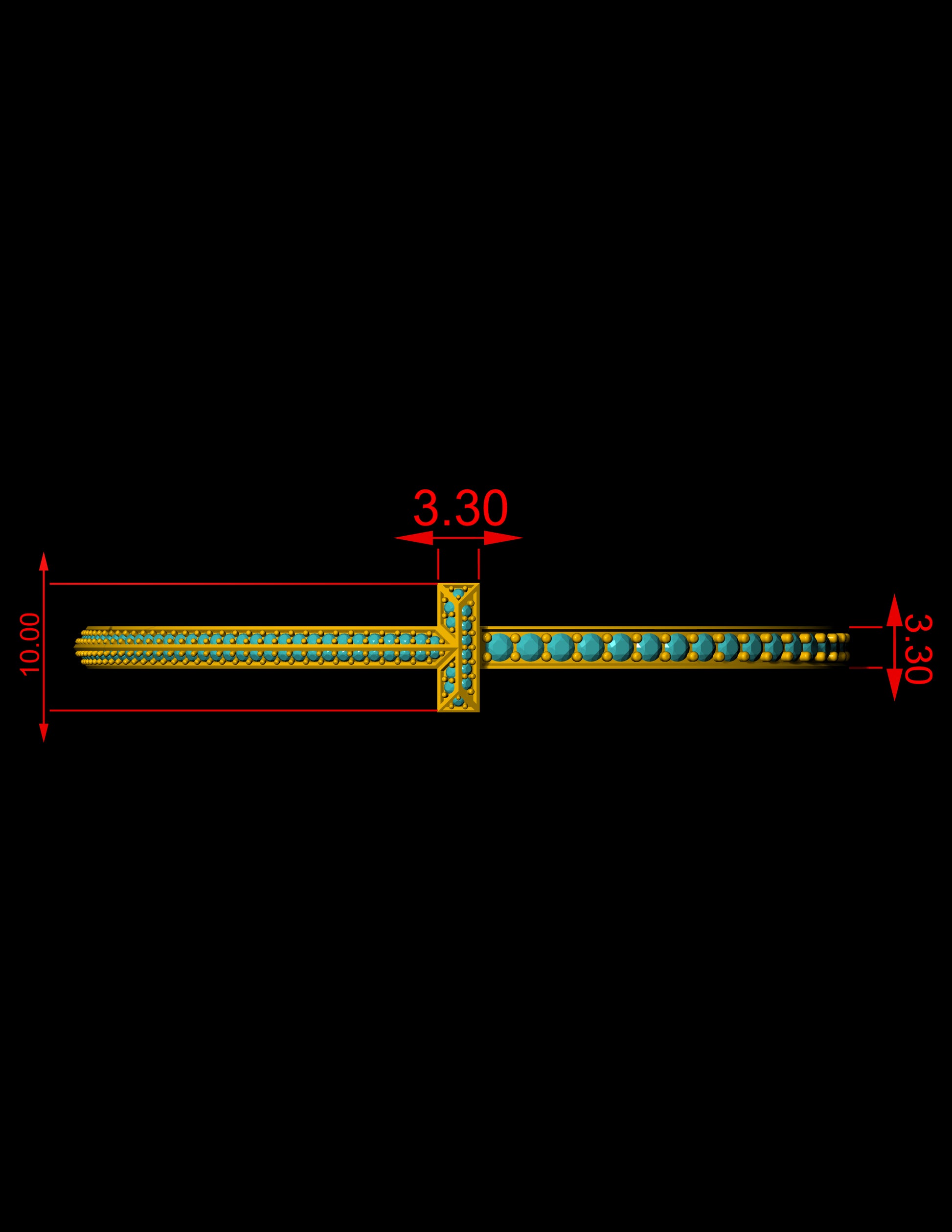

T-Motif Height: 10.00 mm
Lock Mechanism: Snap lock with hidden hinge (included in model)
File Formats Included:
3DM (editable CAD file)
STL (ready for 3D printing)

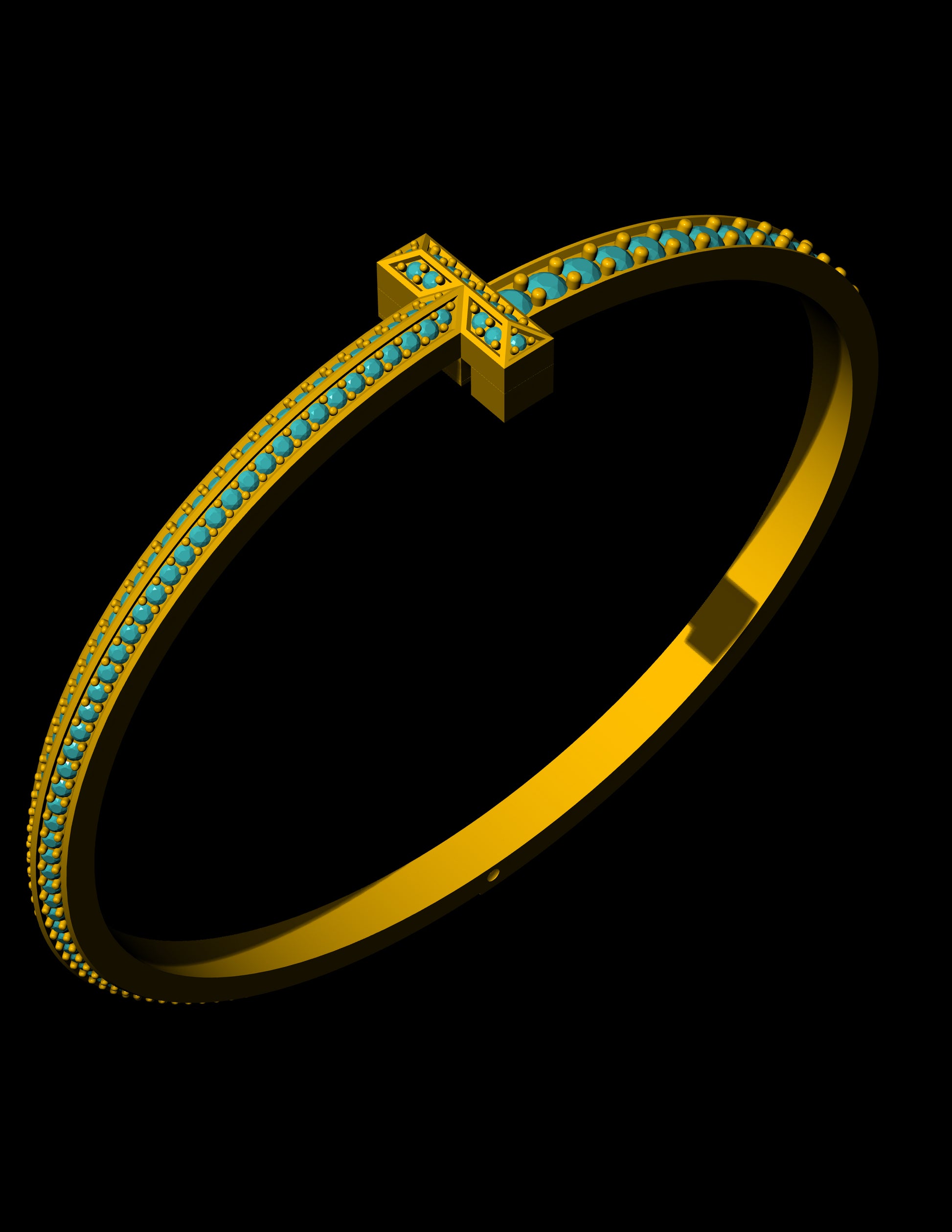

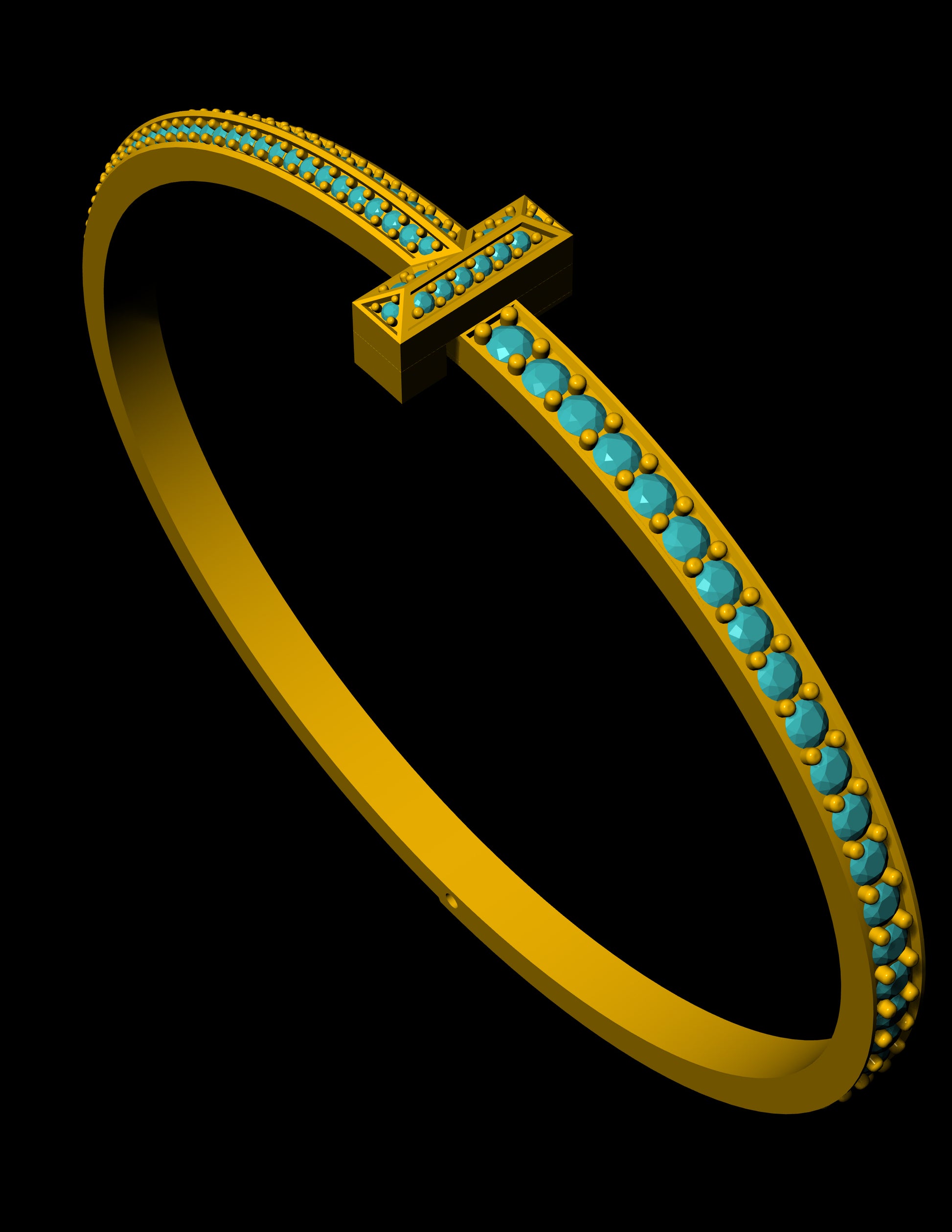

Rendered preview images
Stone layout & weight chart
Software Compatibility:
Rhino, MatrixGold, ZBrush, and other major CAD platforms
License:
This file is licensed for commercial production. Redistribution or resale of the digital file itself is not allowed.
